Softpack-Akku 52V 25Ah BMS 30A XLR-3 mit 50E Rechteckig
- €550,00
- €550,00
- Unit price
- per
Contact us to ask for a quote for a customized product, tailored to your needs.

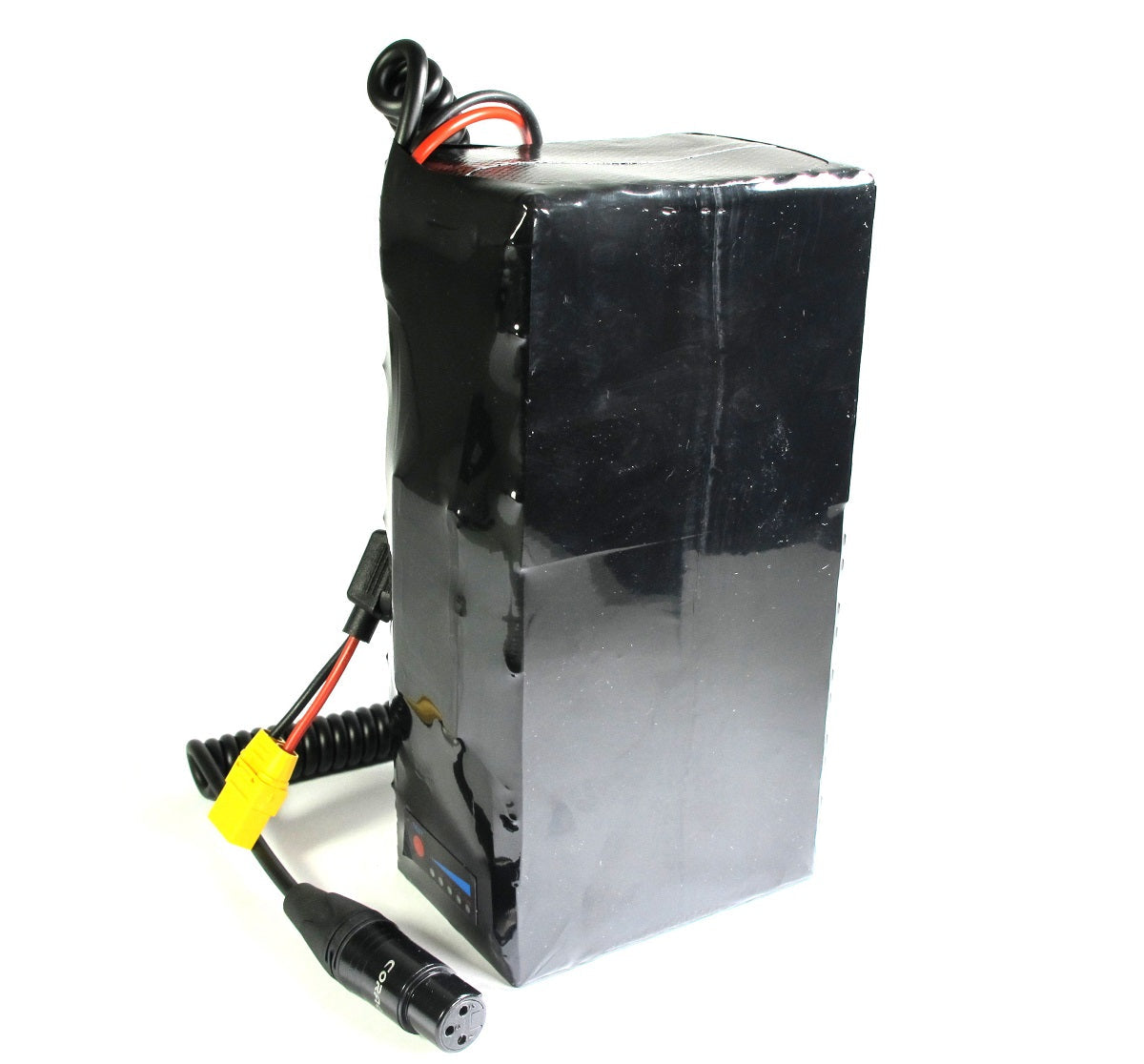

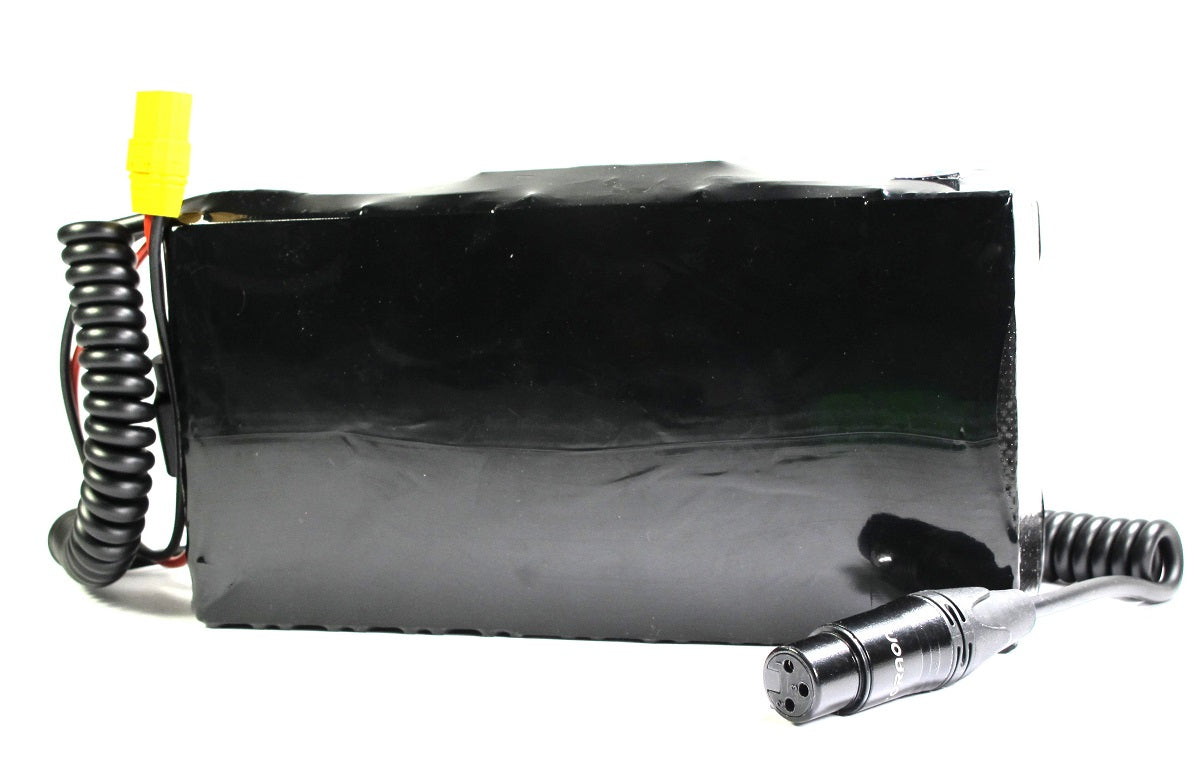

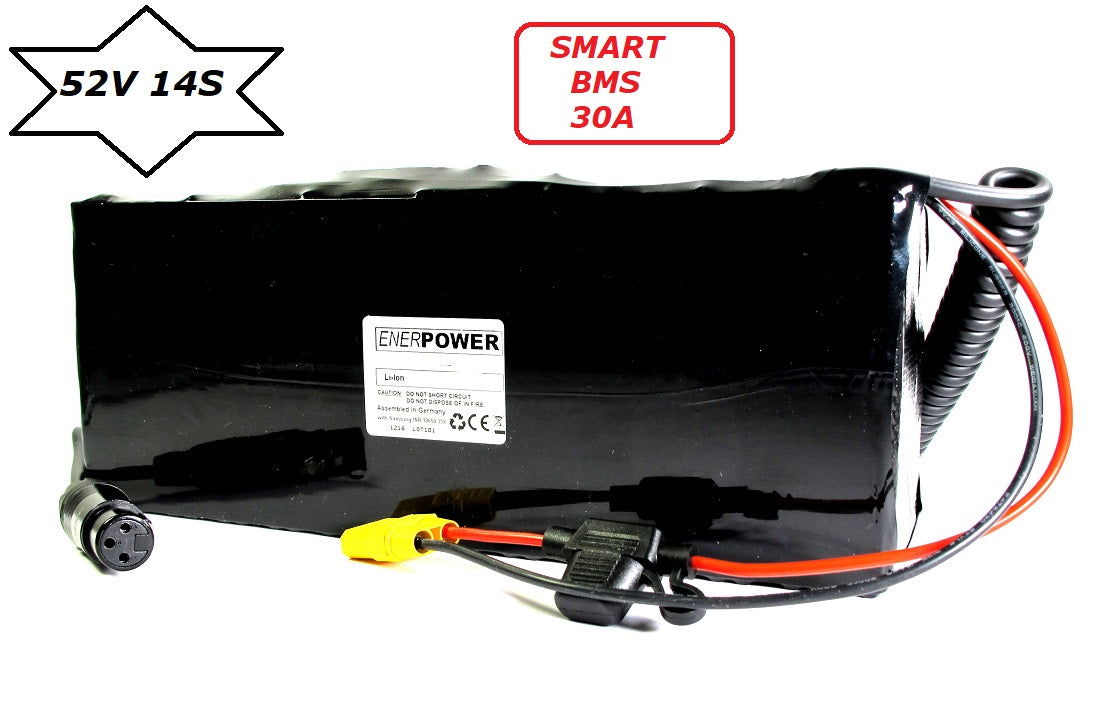

Request a quoteENERpower Softpack-Akku 52V | Format 14S5P | Energie 1300 Wh | Kapazität 25 Ah | für Pedelecs, eBikes DIY | mit INR21700-50E.

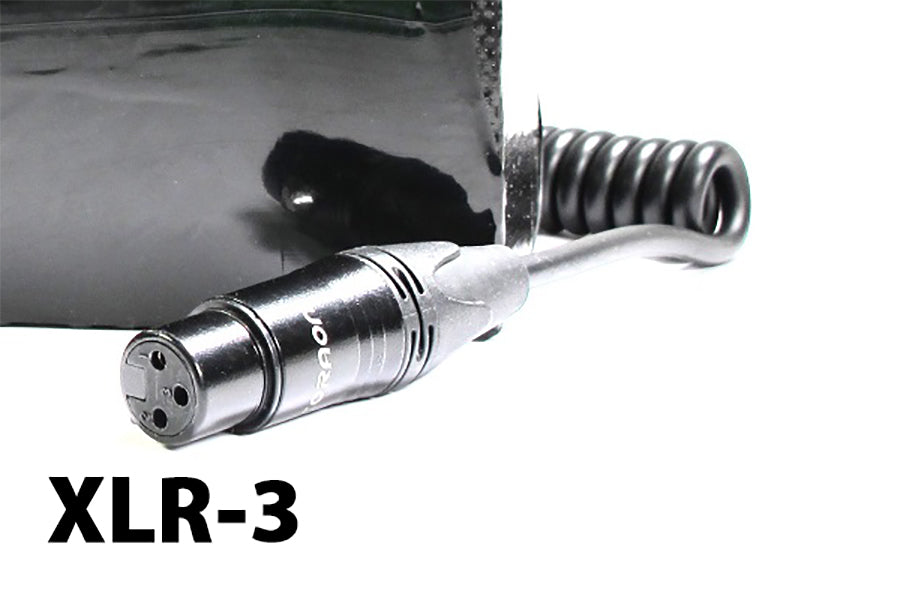

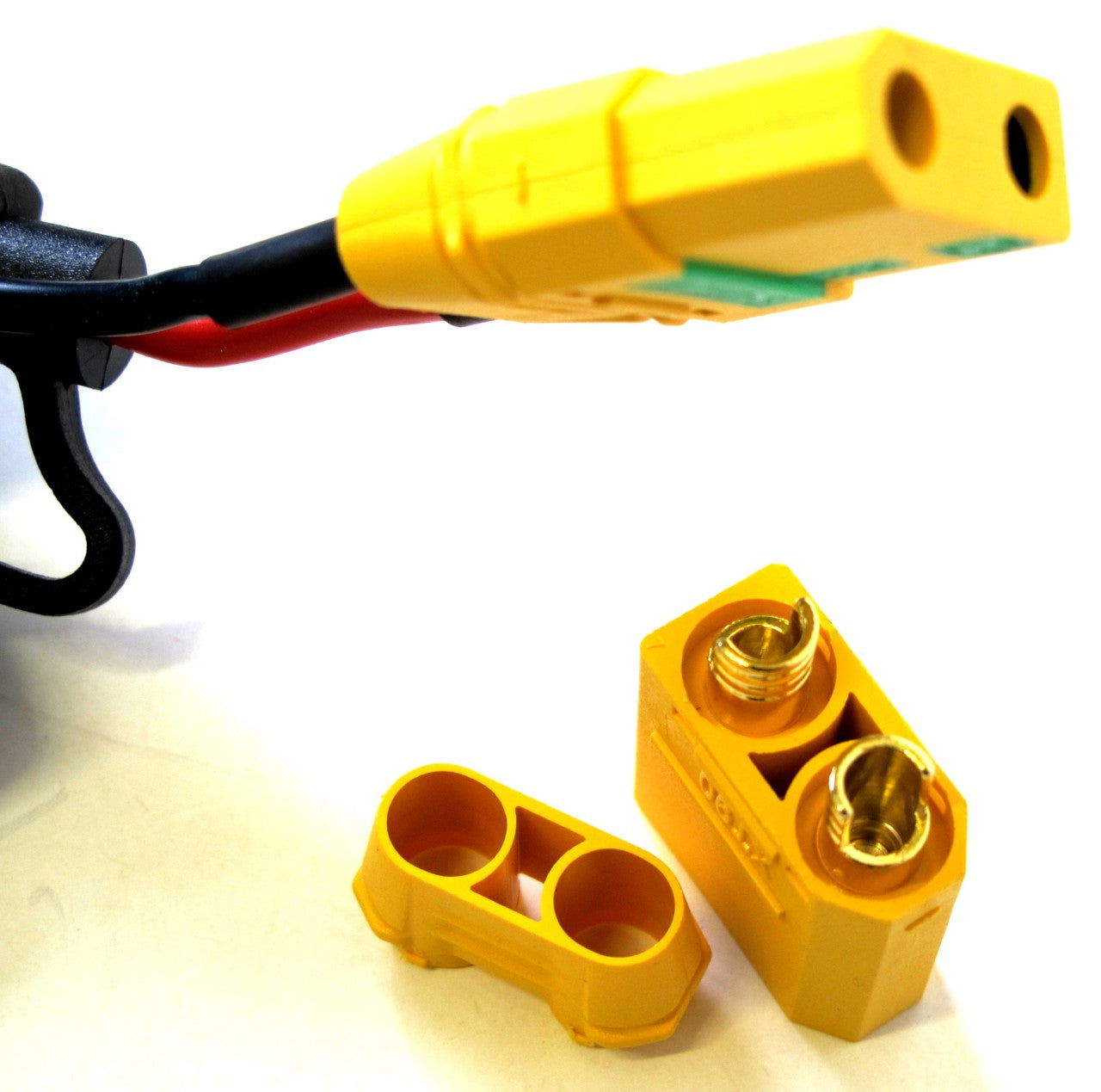

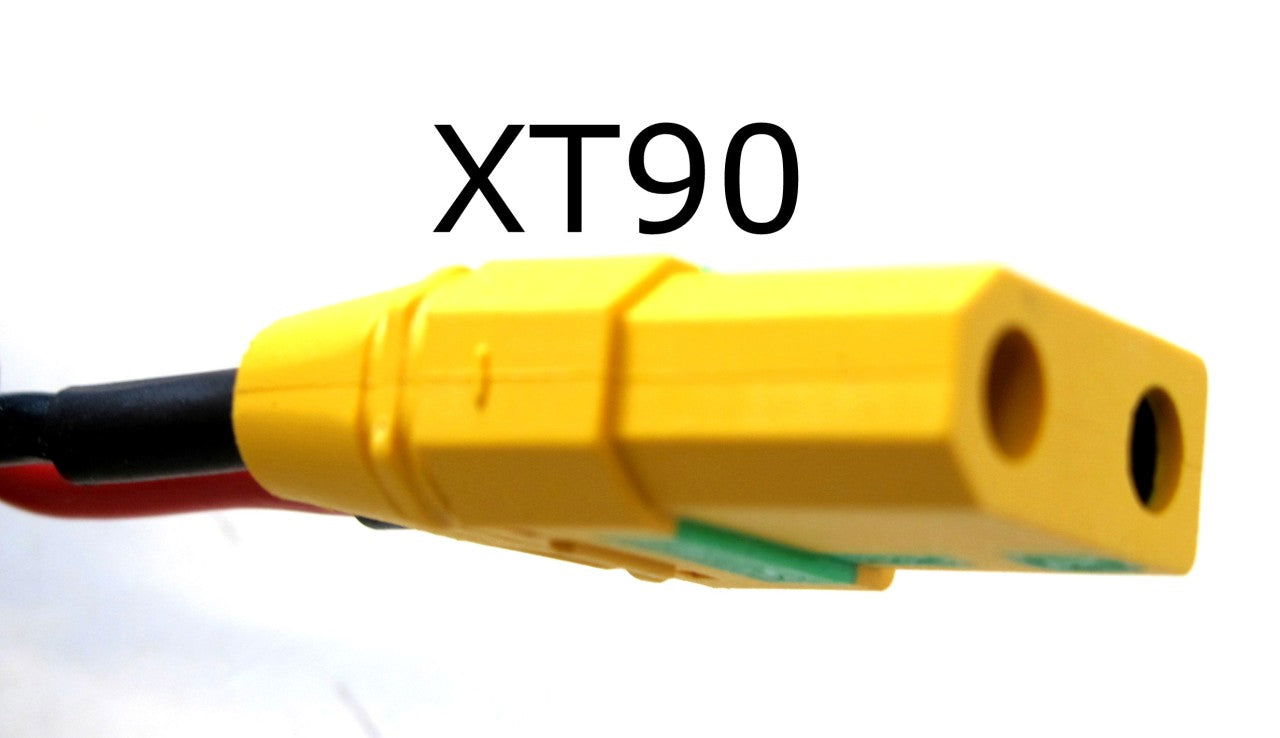

Die 52V Akkus in Softpack, die wir in Berlin fertigen, haben 2 Ausführungen quadratisch und rechteckig. Die Akkus werden in Zellenhalterungen aus Kunststoff gefertigt. Das Aufladen wird mit einem hochwertigen Spiralkabel (20 cm – 100 cm) mit einem XLR-3 PINS ermöglicht, das Entladen erfolgt über ein Entladekabel mit XT90 Steckverbinder (männlich). Eine Sicherung (Fuse) von 40A in einer wasserfesten Halterung begrenzt die Stromentnahme.
In der quadratischen Ausführung werden 10 Zellen als längste Seite (220 mm) verwendet. Dieser Art von Akku fertigen wir in den Formaten 14S3P (Aufbau 10×5), 14S4P (Aufbau 10×6), 14S5P (Aufbau 10×7) und 14S6P (Aufbau 10×9) etc.
In der rechteckigen Ausführung werden 14 Zellen als längste Seite (286 mm) verwendet. Dieser Art von Akku fertigen wir in den Formaten 14S2P (Aufbau 14×2), 14S3P (Aufbau 14×3), 14S4P (Aufbau 14×4), 13S5P (Aufbau 14×5) und 14S6P (Aufbau 14×6) etc.
Das BMS (Battery Management System) wird stets an der längsten Seite des Akkus montiert. An dieser Stelle ist der Akku ca. 10 -15 mm dicker.
Die Softpack-Akkus fertigen wir mit FR4-Isolierungen, schwer entflammbaren und flammenhemmenden Verbundwerkstoffen bestehend aus Epoxidharz und Glasfasergewebe. FR-4 wird unter anderem als elektrisch nicht leitendes Trägermaterial bei elektrischen Leiterplatten eingesetzt.
250 Watt / 500 Watt / 540 Watt / 750 Watt / 950 Watt / 1200 Watt / 1500 Watt
Akku-Konfiguration: | 14S5P |
---|---|
Akkuchemie: | Li-Ion |
Akkukapazität (Bereich): | More than 20Ah |
Akkuspannung: | 52 |
Ausgangsleistung: | Bis 1500 Watt |
BMS: | 30A |
Battery Cell: | INR21700-50E |
Softpack-Ausführung: | Rectangular |
