Freewheel - Tongsheng TSDZ2B 36V 250W mid-engine (2023 Edition)
- €355,00
- €355,00
- Unit price
- per

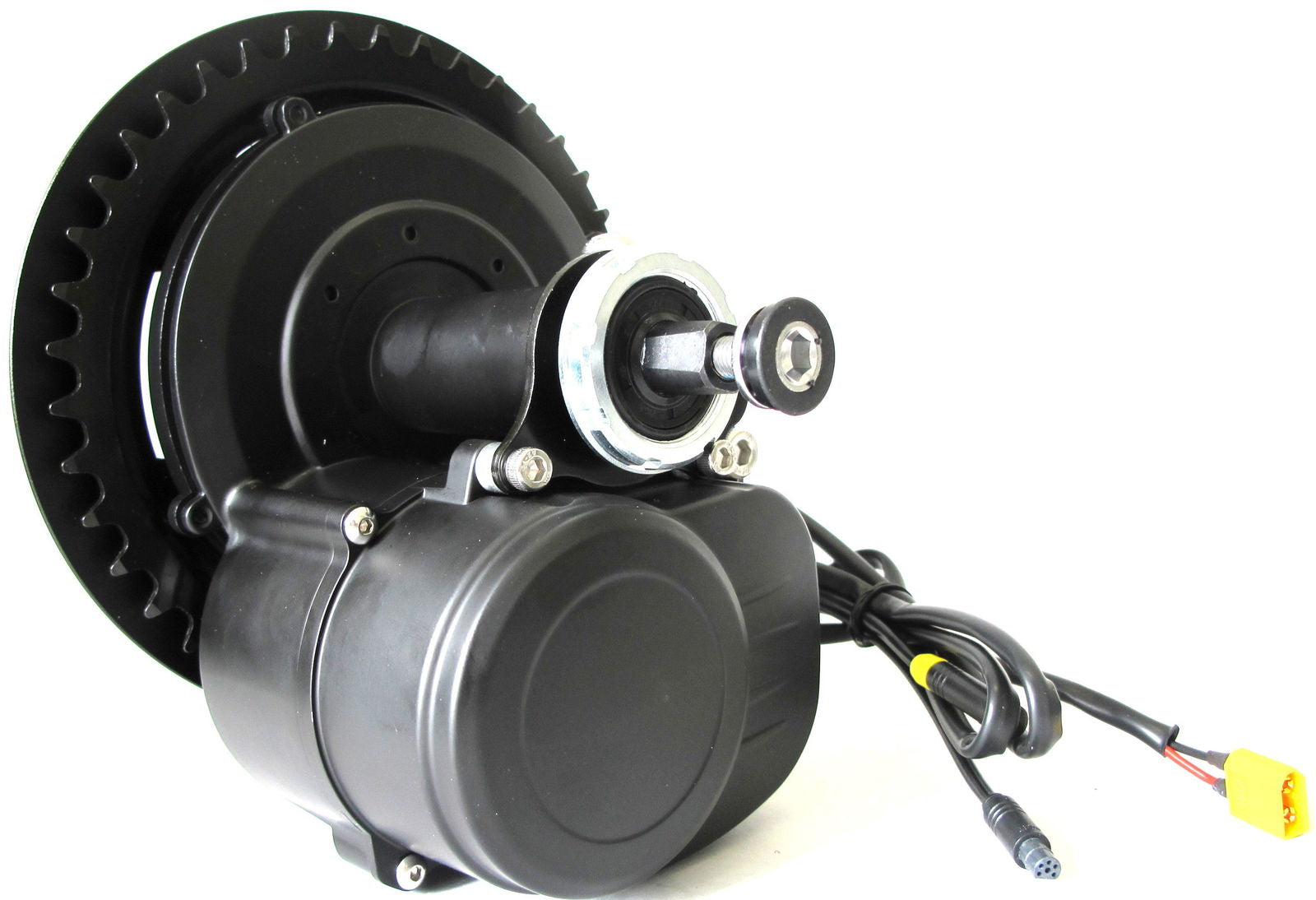

Tongsheng TSDZ2 36V 250W mid-engine + accessories + assembly instructions (German)
This is the new version of the engine from 2023
This motor kit is without coaster brake function
This motor has a push assist function (so-called 6 km/h option) - the setting is done via the display
You can order the appropriate display and, if necessary, extension cable from the bundle offers (subject to charge)

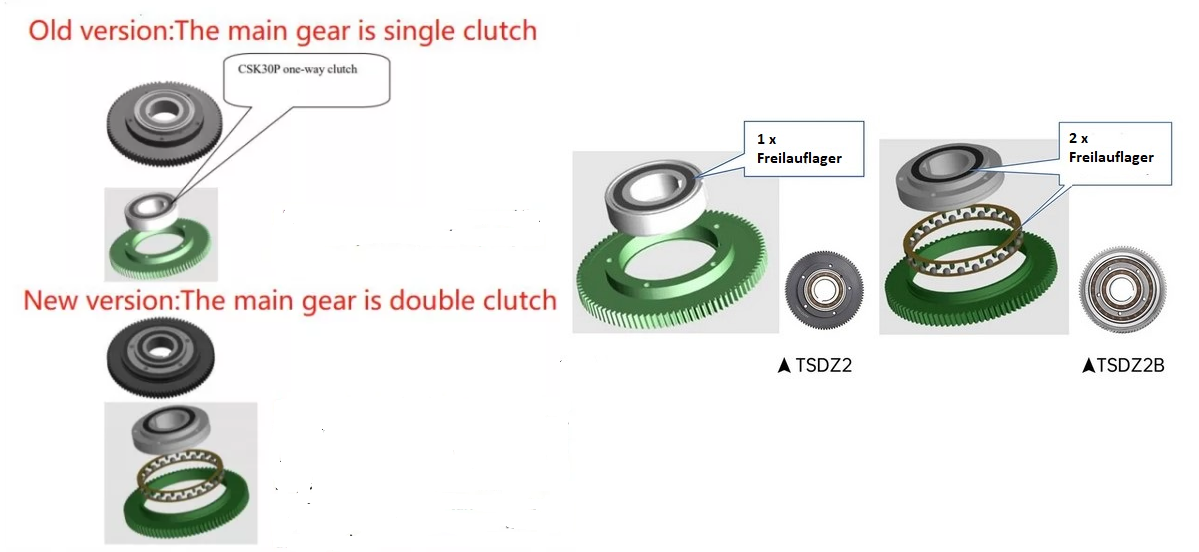

The TSDZ2B version has two freewheel bearings. When switched off, the resistance on the motor is lower and pedaling is easier
Tongsheng motors are known for their simple and uncomplicated installation. The controller is already integrated in the motor and the kit includes all the necessary accessories such as cables and speed sensors. You can choose the right display from a range of compatible displays for a fee. This motor complies with the requirements of the German Road Traffic Act and does not need to be registered. The maximum speed of 25 km/h is preset. The TSDZ2 has an integrated torque sensor and uses it to regulate the level of support. The mid-engine offered has no backpedal function!!!
The kit is suitable for all wheel sizes and widths from 8 to 28 inches and for bicycles with a bottom bracket shell with the following dimensions: shell width 67 mm to 69 mm, inner diameter min. 33.5 mm to max. 35.5 mm. These are the dimensions of the most commonly installed BSA bottom brackets.
We supply our motors with an XT60 high-current battery connector. You will also receive the counterpart.
display
There are several compatible displays to choose from (bundle offers). Please note that the electric handbrakes only work with the VLCD5 display.

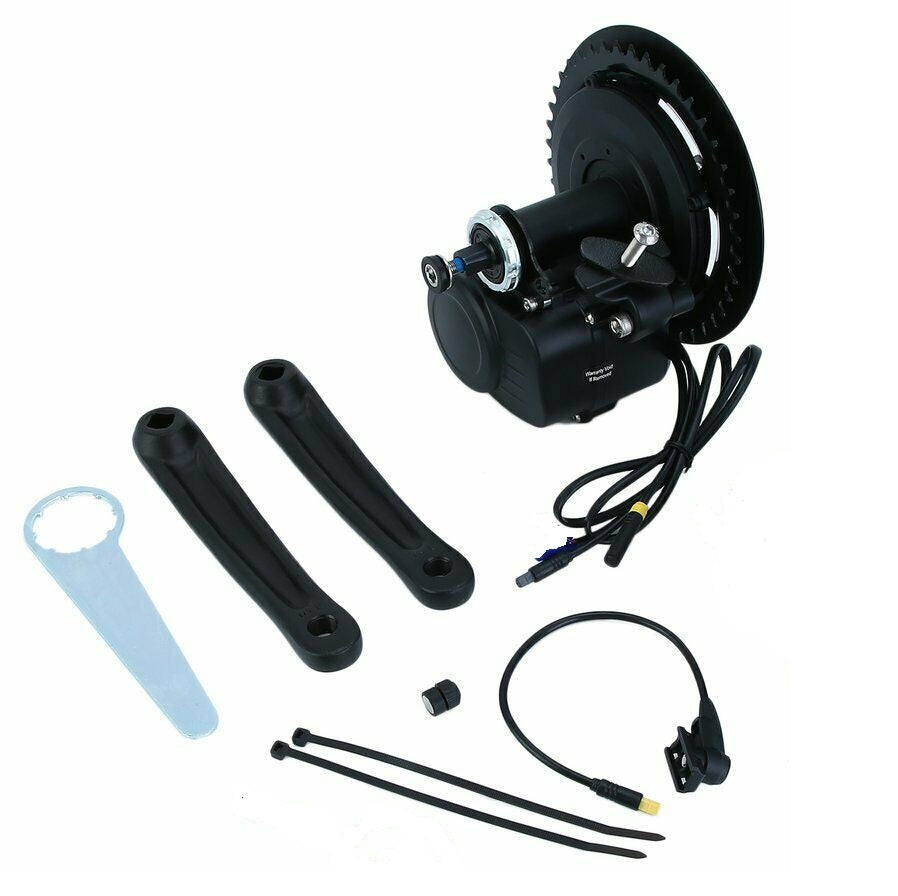

Scope of delivery :
1 x Motor Tongsheng TSDZ2B
1 x speed sensor + cable with splitter
1 x lighting cable
1 x tool
2 x bicycle crank
