ENERpower Softpack Battery 48V | Format 13S3P | Samsung SDI INR21700-50G (15Ah)
Important general information

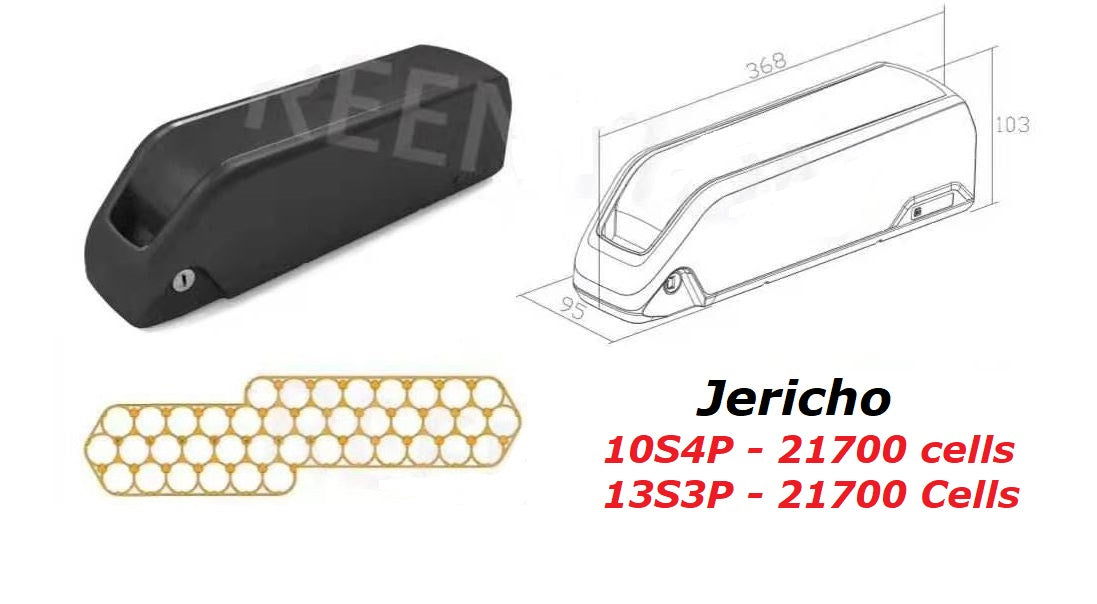

This 48V battery in the Hailong Jericho enclosure, which we manufacture, can be mounted both on the frame and on the luggage rack. The batteries are assembled with plastic cell holders.
Charging is done via a DC round socket (5.5 × 2.1 mm).

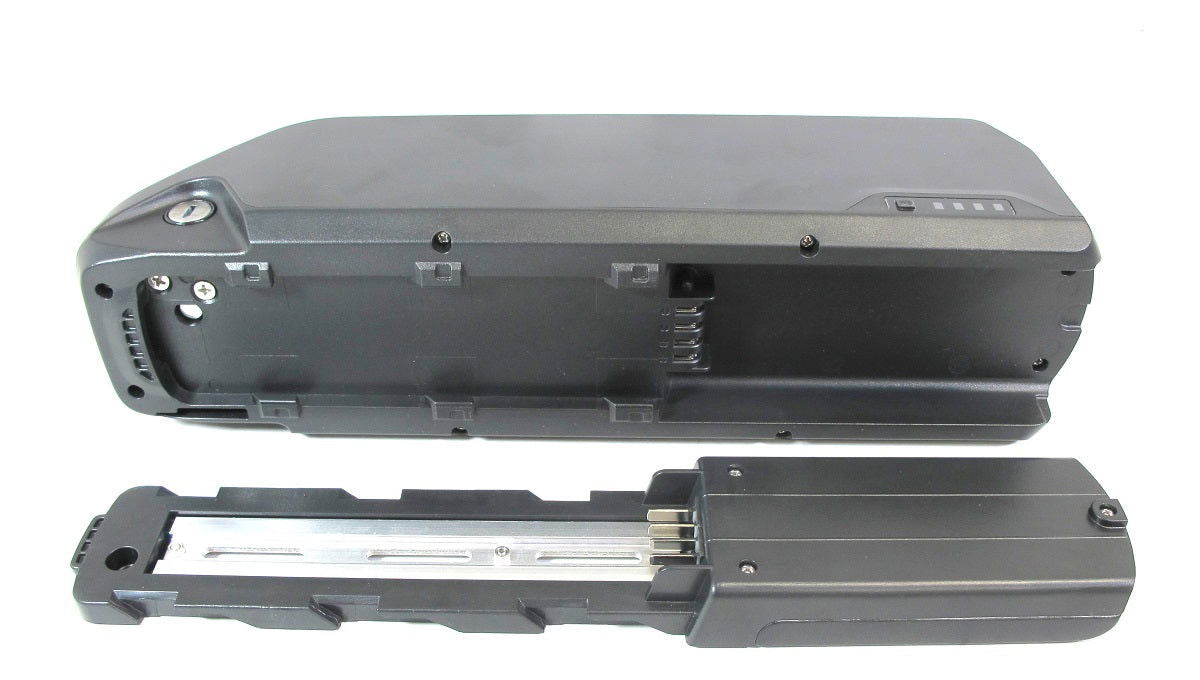

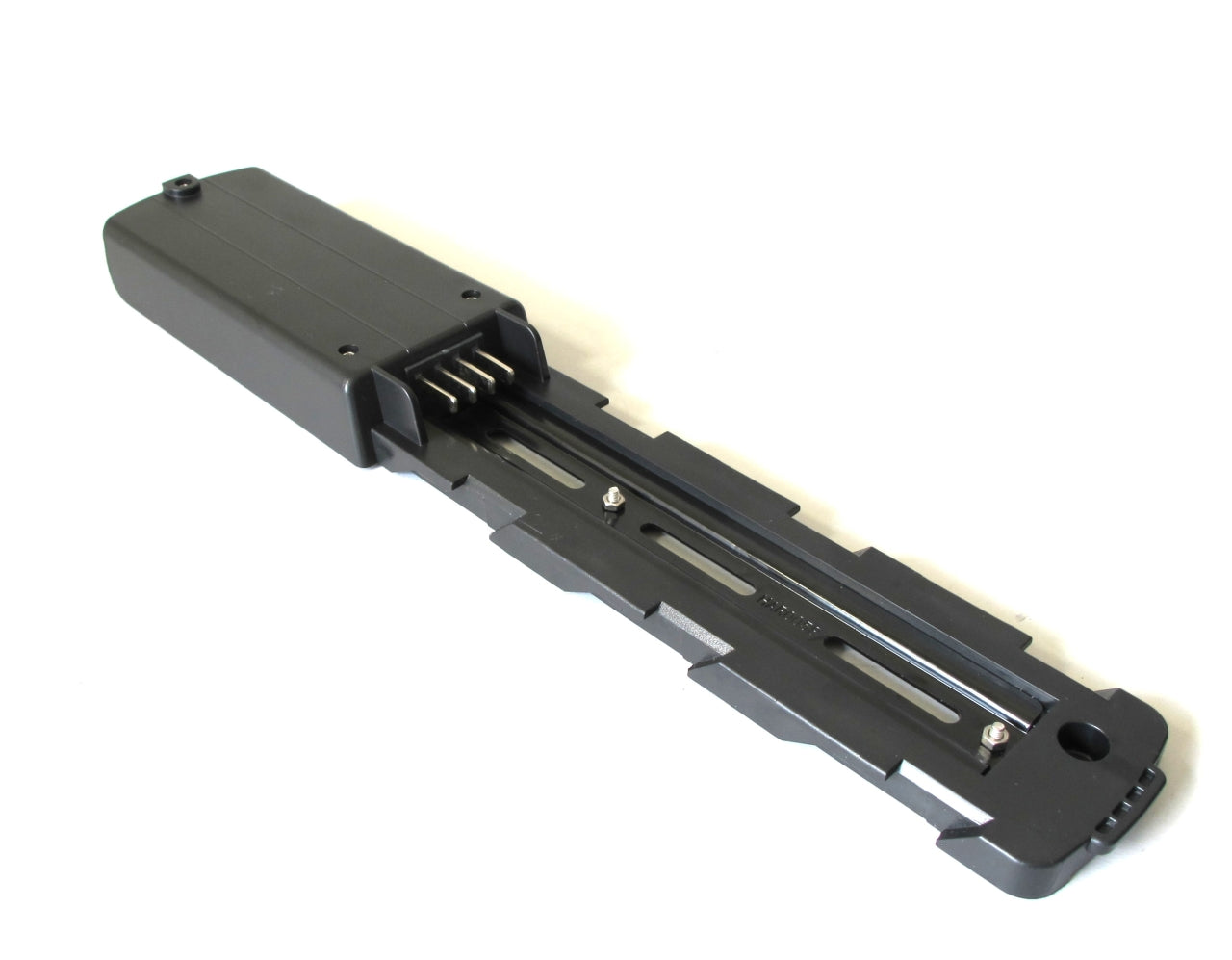

Discharging is done via the holder, which is detachable from the battery, with an XT90, XT60, or (for an additional charge) Anderson connector.
This enclosure can accommodate up to 40 21700 cells.
With a BMS that supports a continuous load of 20–22 A (with a peak load of up to 30 A), this battery is suitable for motors with up to 1000 W power that are operated in 48 V (13S) systems.

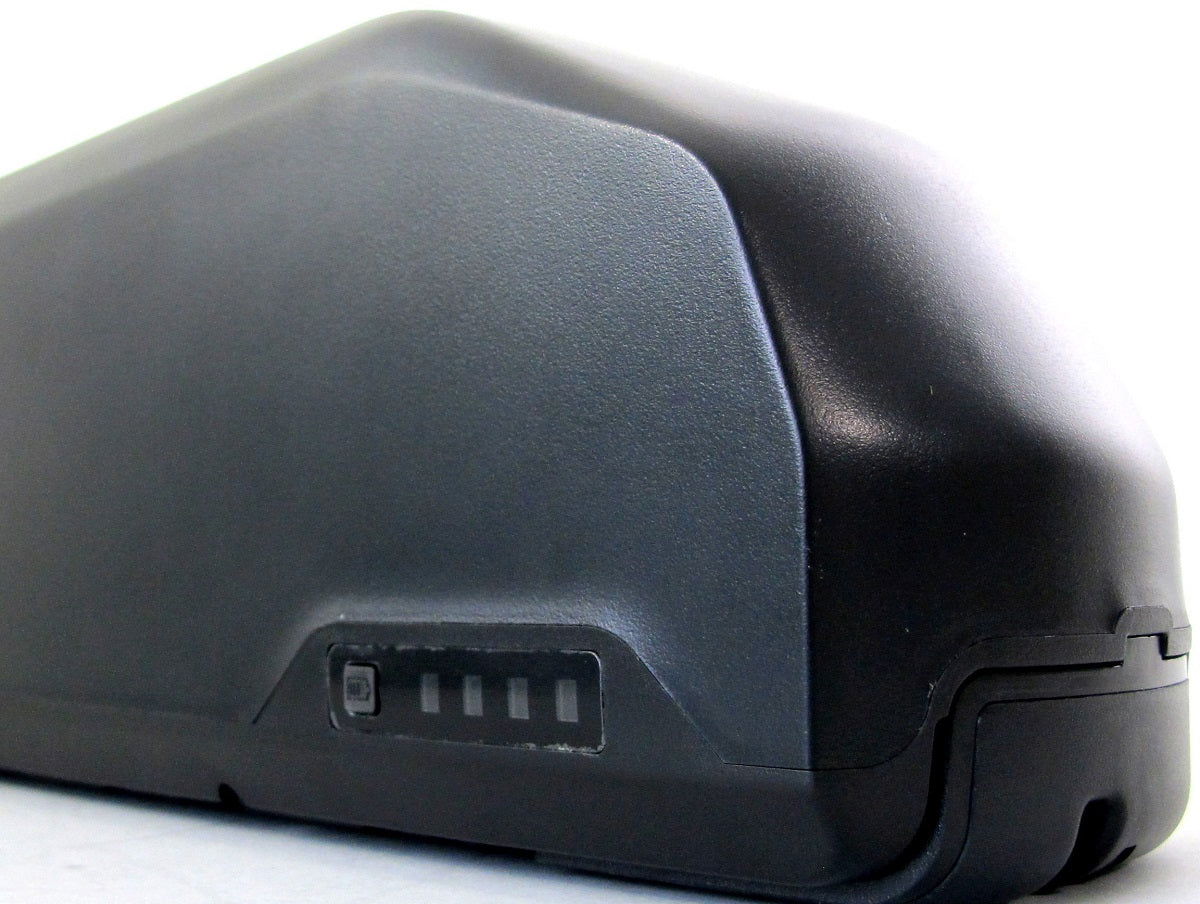

The battery holder is additionally reinforced with metal plates. In addition to a state-of-charge indicator, the enclosure also features an on/off switch.
With us, you can not only select the appropriate connection cable, but also the suitable charger. The difference between the chargers lies in their respective output currents, which determine the charging speed.
Environmentally friendly according to EU Directive 2002/95/EC (RoHS)
Technical data
Li-Ion cell: Samsung SDI INR21700-50G
Voltage (nominal): 48V
Capacity: 15Ah
Energy: 720Wh
Configuration: 13S3P
Internal resistance: ≤150mΩ
Charging voltage: 54.6V
Cut-off discharge voltage: 35.1V
BMS continuous discharge current: 22A
BMS 30-second discharge current: 30A
Fuse: 30A (on the discharge cable)
Weight: approx. 3.70 kg (without holder)
Charging: DC round plug 5.5 x 2.1 mm

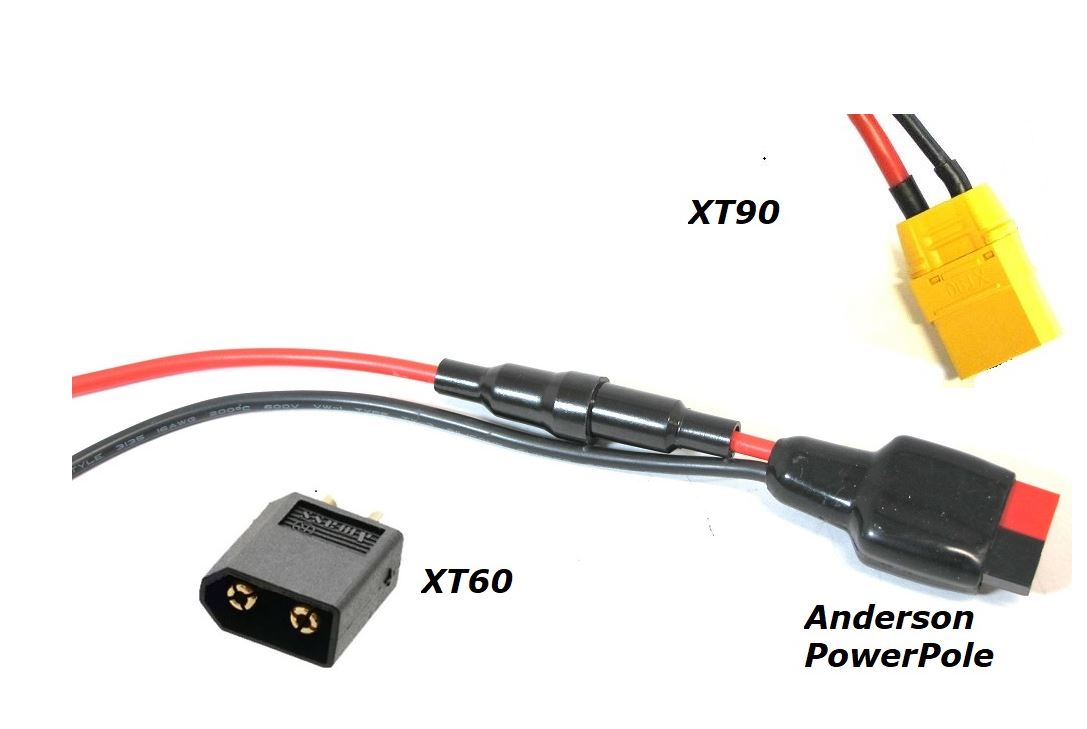

Discharging: Cable with 30A fuse with XT60, XT90 or Anderson high-current connector)
| Battery configuration: | 13S3P |
|---|---|
| Battery chemistry: | Li-Ion |
| Battery capacity (range): | 10Ah - 15Ah |
| Battery voltage: | 48V |
| battery cell: | LG INR21700-M50T |
| BMS: | 20A |
| Housing (Hailong): | Hailong Reention Jericho |
| Softpack version: | Rectangular |
