ENERpower ECD-500 energy storage 500Wh 20Ah

ENERpower to the People!

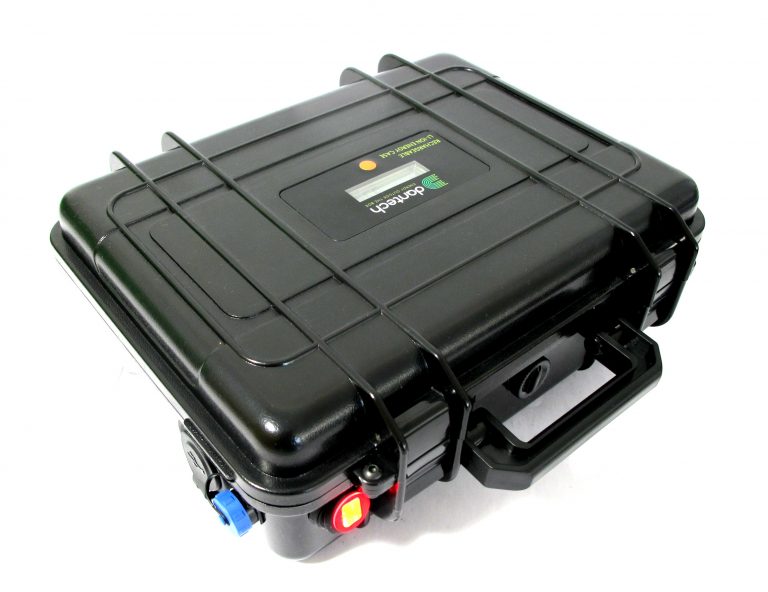

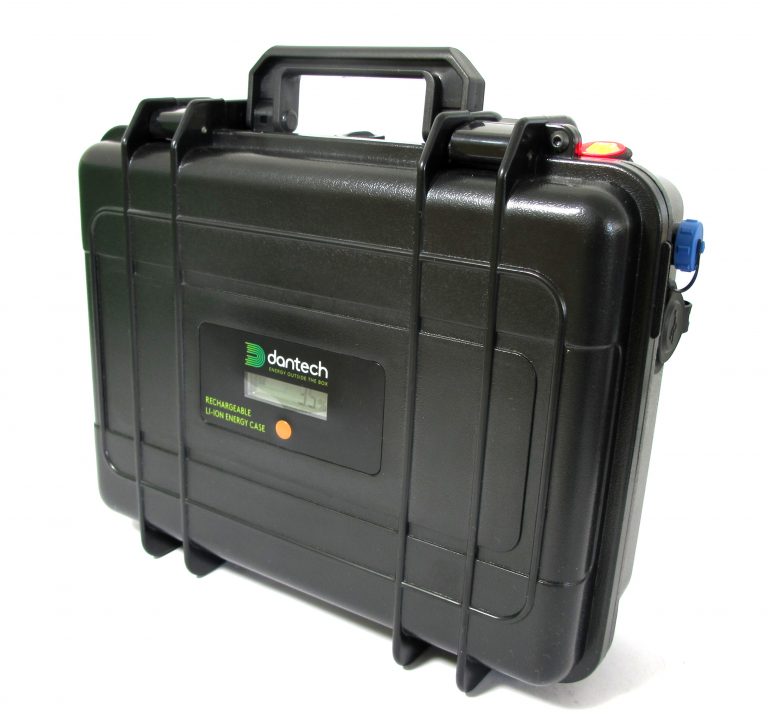

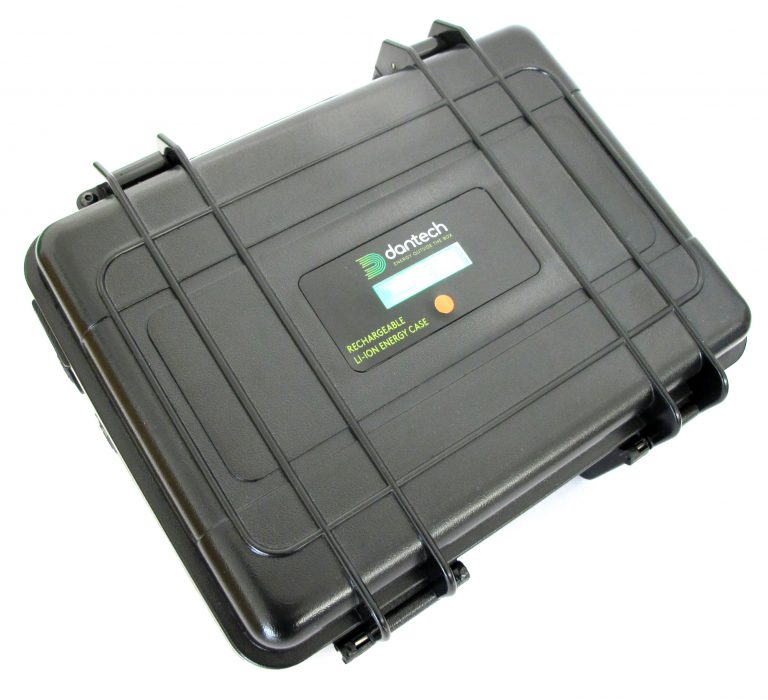

ENERpower ECD-500 enormous energy storage / power bank / Li-Ion generator / 500Wh / 20Ah

General information

Our small, light & flexible energy supplier

Do you want to spend a great time outdoors in a mobile, flexible and independent way, without losing the comfort of light, communication, media and much more? Without having to put up with the noise, the smell of petrol and the additional weight of a conventional power generator?

With the new range of energy storage devices from ENERpower, you can satisfy your thirst for energy almost anywhere, almost any time and in almost any situation.

We offer two versions of each model:

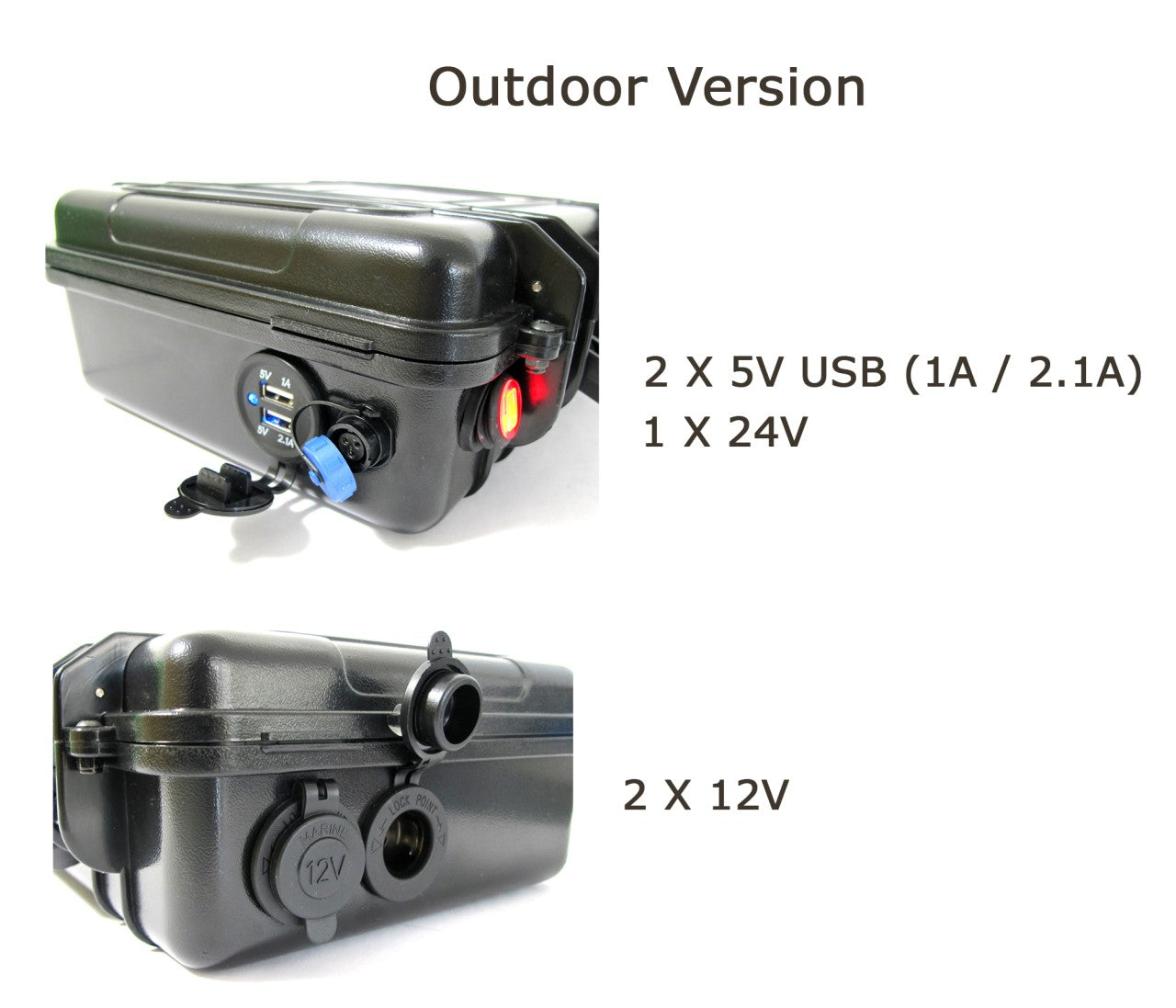

1. Outdoor (Type 1): This power bank is designed for outdoor use
2. Communication (Type 2): This power bank has been designed as an "all-rounder" in the field of communication

The two versions differ in the selection of connections:

The connections

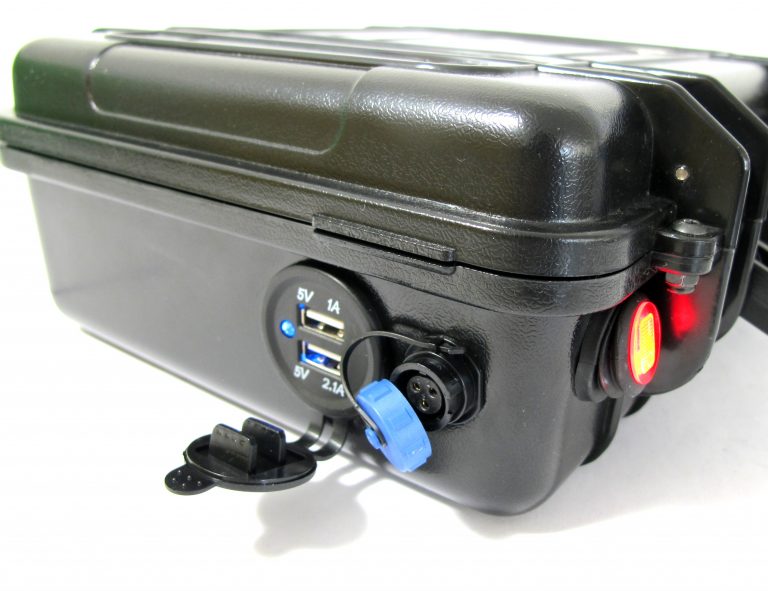

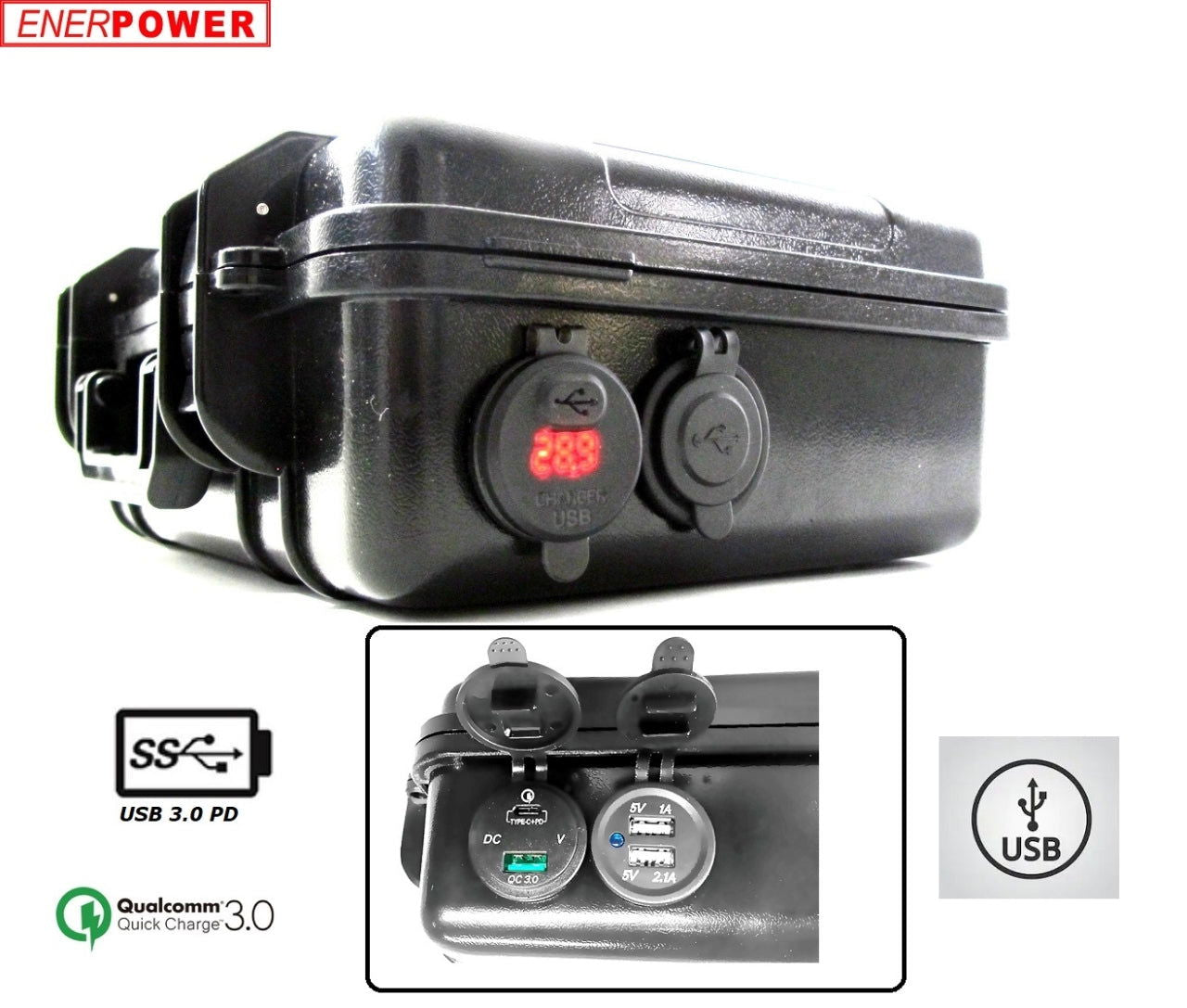

• 5V USB 1A : Output for cell phones, smartphones, GPS devices with a maximum input of 1A charging current.
• 5V USB 2.1A : Output for cell phones, smartphones, GPS devices with a maximum input of 2.1A charging current.
• QC3.0 : Output for fast charging via USB of the latest mobile phones & smartphones
• USB-C / PD : Output for fast charging of smartphones, tablets & notebooks such as Apple, Dell, ASUS, Acer, Lenovo, Toshiba etc. (compare the compatibility of your device with this port)

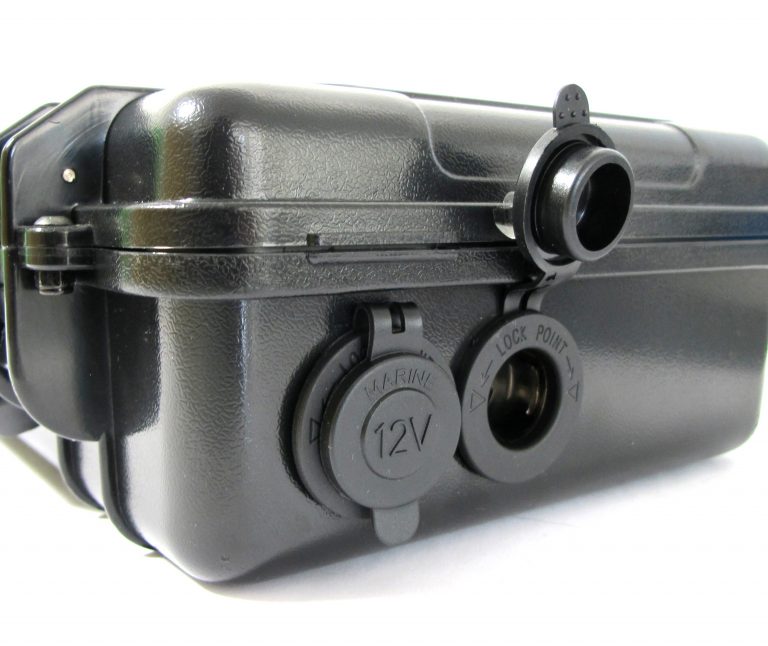

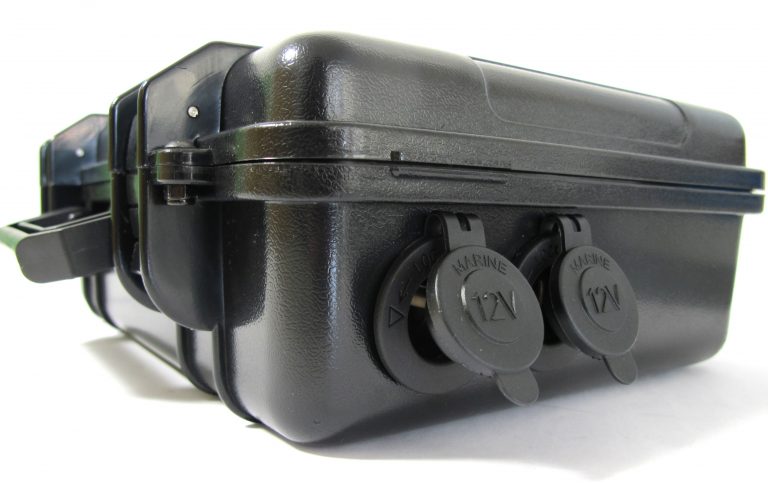

• 12V CLA ("cigarette lighter")
  Output for 12V devices such as (e.g.) lighting systems, 12V cool boxes, 12V televisions, small 12V hotplates, etc.

Important features

Some important features make our product clearly superior to similar products:

• 24V operating voltage: The special thing about our system is the very high operating voltage of 24V (7S). This makes our energy storage system much more robust and does not lose voltage when power requirements are high. Our product does not step up, only step down. The use of external 24V to 220V converters is also possible and economical compared to 12V systems.

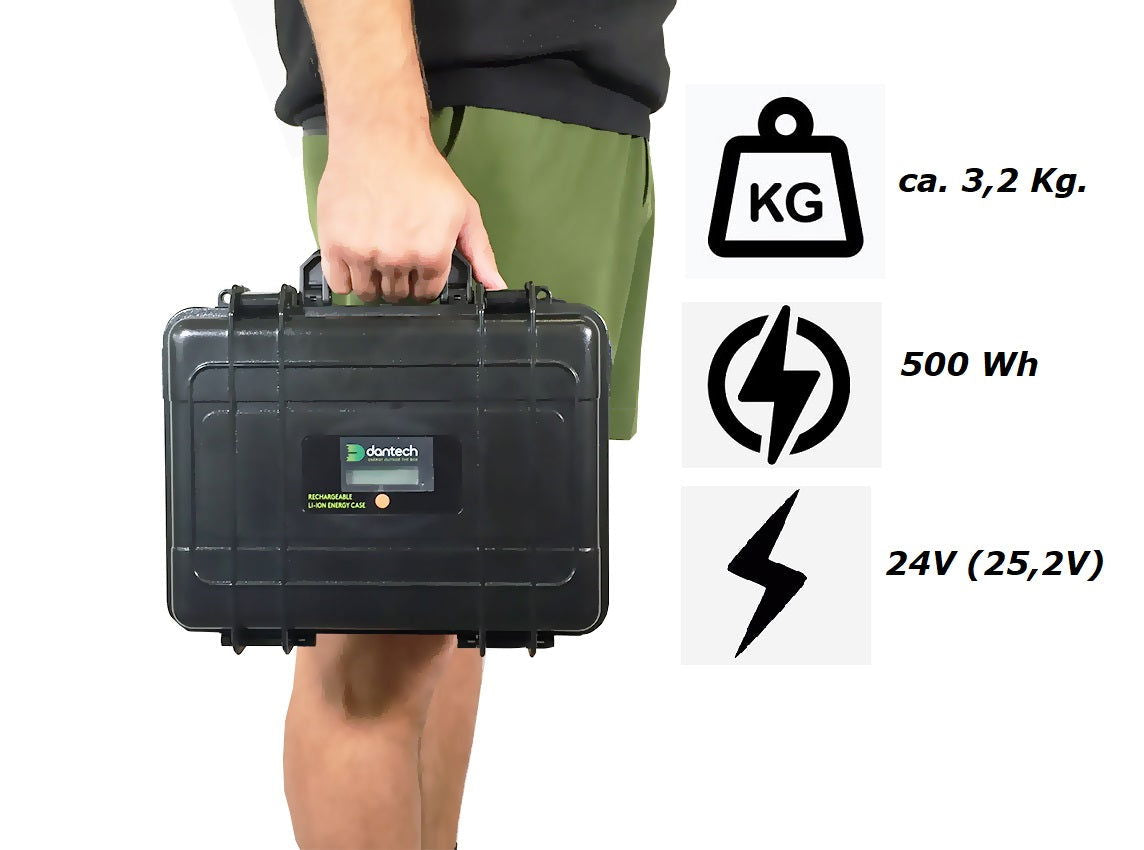

• Weight: The ECD-500 is significantly lighter (only about 3.4 kg) than competitors' products and this is due to the energy density of the Li-Ion battery cells from Samsung SDI type INR18650-35E that we use.
• Design: In our product we take into account the exact number of possible outputs (5V socket, 12V output, 24V output) so that enough power comes out of these outputs. This results in a fairly low self-consumption (3.5W) and very low self-discharge (approx. 3% per month in off mode)
• Made-In-Germany: We manufacture our product in Germany. The ECD-500 is not a stock product and is therefore freshly manufactured. We also provide you with a transparent overview of all technical data.

Our flexible energy storage offers you the advantages of Li-Ion technology with high energy density, light weight and absolute silence.

ENERpower to the people - The only people who make noise on vacation are the children and the neighbors.

highlights

• Lightweight portable power supply for DC/AC devices.
• Advanced lithium-ion technology supplies 500Wh (20Ah / 24V)
• Various connections for numerous applications (see above): 24V DC, CLA connection 12V ("cigarette lighter"), 5V USB
• 24V operating voltage ensures stable voltage level
• Manufactured with Samsung SDI battery cells (INR18650-35E)
• Robust and lightweight housing reduces weight without sacrificing durability.

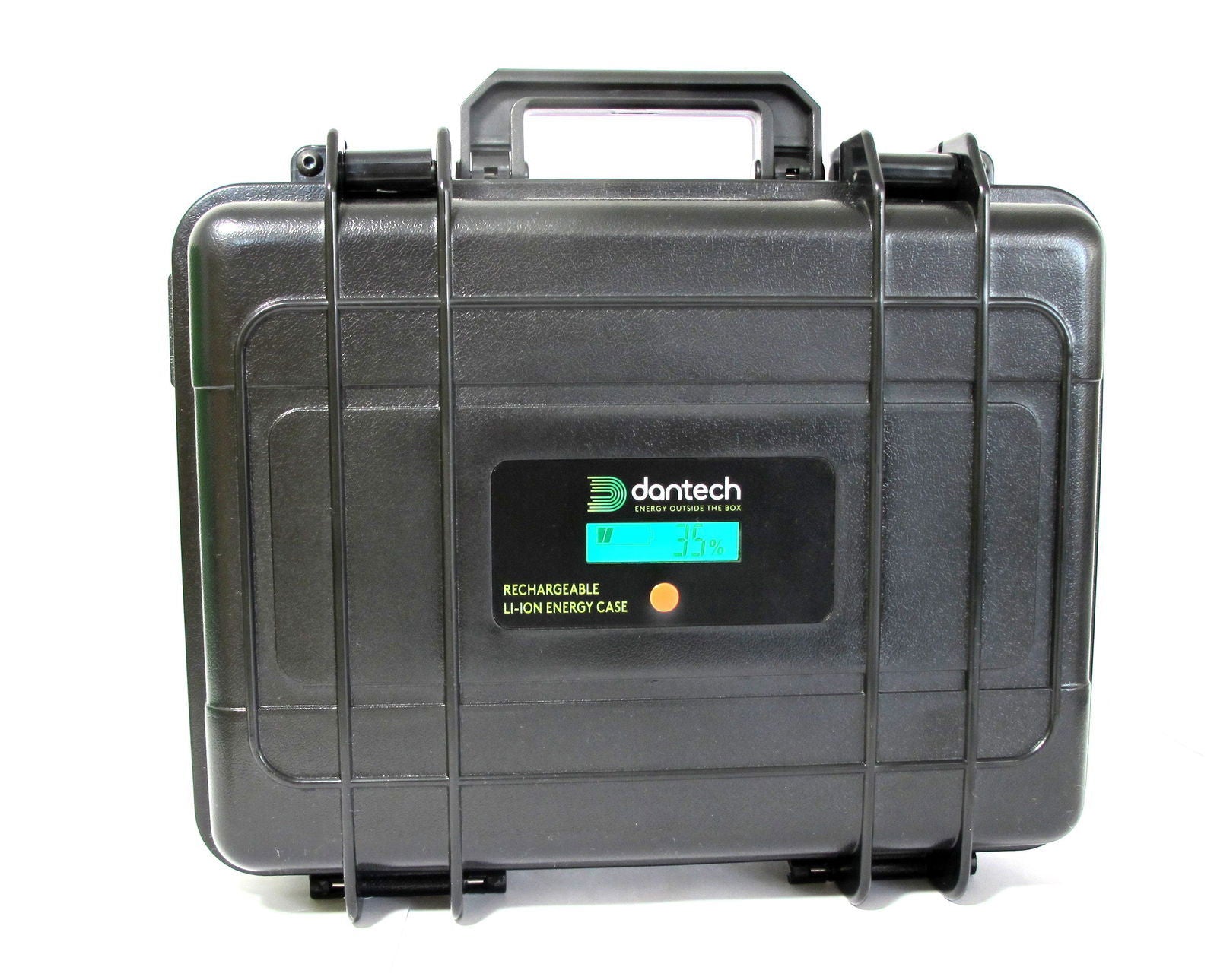

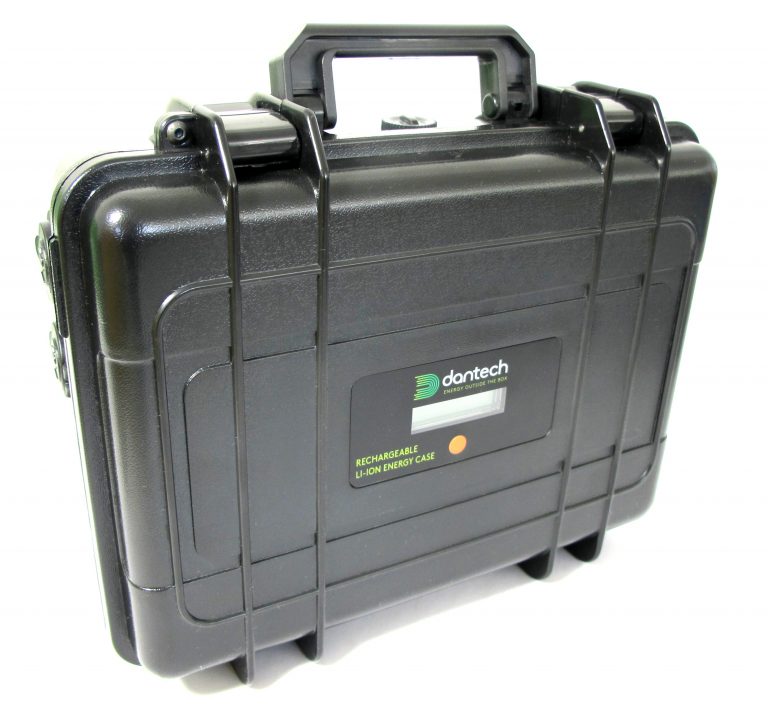

• Illuminated LCD display shows remaining capacity.
• short-circuit and overcharge protection
• Plug-and-Play - with child's play operation
• Comes with a suitable charger 29.4V 2A (charging time empty to full: approx. 11 hours)

Technical data

• Model: ECD 500Wh-20Ah (Type 1 / Type 2)
• Battery type: Li-Ion 25.2V - 20Ah (7S6P)
• Battery cell: Li-Ion / Samsung SDI INR18650-35E
• Capacity: 20.1Ah
• Energy: 506Wh
• charging voltage: 29.4V
• charging current: < 7A
• Connections: see above
• Operating temperature: -20°C~50°C
• Self-consumption in off mode per month: < 3%
• Own consumption during operation: 3.5W
• Weight: approx. 3.4kg
• Dimensions: 230x100x280 (HxWxL)
• Display: Illuminated LCD display


charger (included)

• AC input: 100V AC - 240V AC / 47Hz - 63Hz / 100W DC
• Output: 29.4V / 2A

scope of delivery

• 1 x Energy Case ECD-500
• 1 x charger 29.4V 2A

Important to note

This product is manufactured in Berlin, Germany and is NOT a stock item.
We need about 5-7 working days for production and quality control
